Booster 21C
Compact, exceptional energy efficiency, ultimate performance
Key features:
Mobile greenhouse grass grow solution
Developed for local grass treatment, research & demonstration purposes
Reflective cloth cover allows to capture and re-use LED heat
Customizable cloth cover allow for promotional possibilities
10 year LED warranty
Cloth cover increases energy efficiency >30%
CONTACT US FOR a TRIAL OR DEMONSTRATION
Booster 21C
Compact, exceptional energy efficiency, ultimate performance
The Booster 21C is a mobile greenhouse for grass growth. This makes it possible to realize grass germination and growth even at temperatures close to 0 °C. It recovers your grass after games and events, and ensures pitch quality throughout the year. This setup is suitable for use in colder climates or in conditions where the soil temperature can become as low as 0 °C (no field heating). Developed for local or small scale grass treatment or research purposes.
Due to the application of state of the art LED lighting from Mechatronix, you save thousands of euro's in electricity costs compared to a comparable HPS SON-T setup. This ensures that you are guaranteed to have the lowest operating costs and, compared to HPS SON-T, have earned back this setup within 2 years. This ensures healthy grass and better growth at lower costs.
Innovative Climate Control allows to re-use the heat generated by the LEDs to increase grass temperature creating a smart mobile grass greenhouse.
All features
Mobile greenhouse grass grow solution
Lowest operational costs by using LED
Developed for local or small scale grass treatment or research purposes
Easy to use, simple design
Proven grass germination and growth even at temperatures close to 0 °C
Full light spectrum control
Fast delivery
State of the art LED technology from Mechatronix
90% more light than SON-T
10 year LED warranty
Up to 50% more energy efficient than competing LED systems
Innovative lens design result in homogeneous grass growth
Sensor integration
Lowest-cost of ownership
Reflective cloth cover allows to capture and re-use LED heat
Customizable cloth cover allow for promotional possibilities
Climate control for reliable growth
Data controlled grass management system
| Key specifications | Booster 21C | |
|---|---|
| Turf pitch lighting area | 21 m2 |
| Light control | Off / On (softstart / -stop) |
| LED dimming | 0 - 100% (wireless control) |
| Climate control | Yes |
| Dimensions closed (LxWxH) | 4,0 x 2,1 x 1,8m |
| Dimensions opened (LxWxH) | 4,0 x 6,0 x 1,8m |
| LED fixtures | 2-3x Mechatronix CoolStack® |
| PPFD | 331-498 µmol/m2/s |
| Energy consumption | 2-3 kW (0,08 - 0,13 W/m2) |
| Market leading efficiency | 3.485 µmol/J |
| Voltage | 110 - 400 Vac |
| Weight | ~300kg |
Booster 21C explained
Compact, exceptional energy efficiency, ultimate performance
Booster 21C

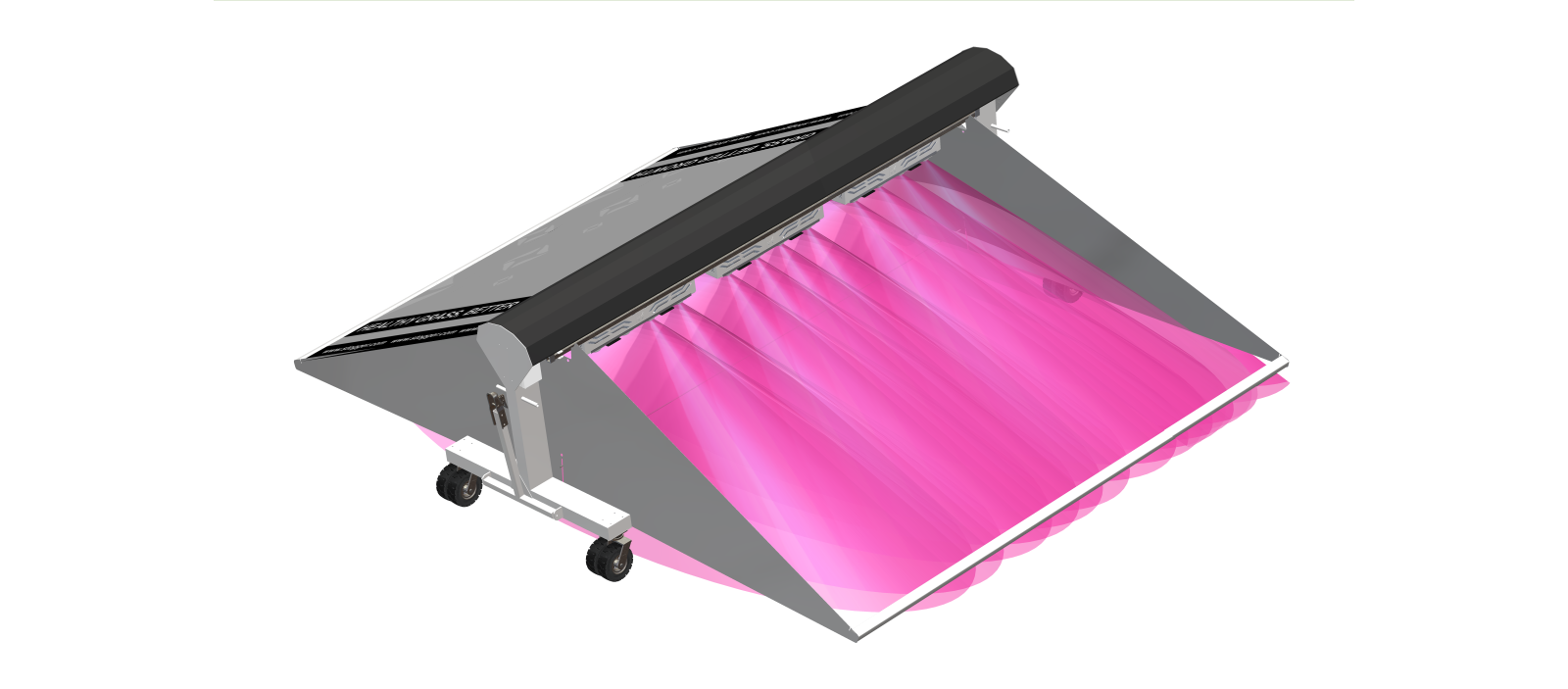

A mobile grass greenhouse on wheels: 2-3 Mechatronix CoolStack® fixtures generate and capture PAR light as well as heat to to enable the process of photosynthesis for grass to function, recover and stay healthy. The heat is mechanically blown from the fixtures to the turf pitch, stimulating grass growth at low temperatures.
A mobile grass greenhouse on wheels: 2-3 Mechatronix CoolStack® fixtures generate and capture PAR light as well as heat to to enable the process of photosynthesis for grass to function, recover and stay healthy. The heat is mechanically blown from the fixtures to the turf pitch, stimulating grass growth at low temperatures.
Assembly and installation
Although our Mechatronix CoolStack® LED solution has a market leading energy efficiency, the residual heat generated in the fixtures, is used to increase the grass leaves temperature, allowing the grass to germinate even at nearly freezing temperates.
Addionally, 25% light reflection of the grass is reflected back to the turf pitch by the Climacloth.
Although our Mechatronix CoolStack® LED solution has a market leading energy efficiency, the residual heat generated in the fixtures, is used to increase the grass leaves temperature, allowing the grass to germinate even at nearly freezing temperates.
Addionally, 25% light reflection of the grass is reflected back to the turf pitch by the Climacloth.
Convenient usage
The Booster 21C is delivered complete and ready to use. Due to the very light and compact design and castors, the Booster 21C is easily maneuverable and replaceable by only 1 fieldmanager. Innovative design ensures that there is no danger for overturning.
The Booster 21C is delivered complete and ready to use. Due to the very light and compact design and castors, the Booster 21C is easily maneuverable and replaceable by only 1 fieldmanager. Innovative design ensures that there is no danger for overturning.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off and the screens to open and close. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
The control is easy and intuitive. Manual controls allow to put the Booster on and off and the screens to open and close. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
Cost calculation example
HPS SON-T (2.100 µmol/s)
€ 8.000
Energy consumption per year (€ 0,11/kWh)
€ 32.310
HPS SON-T replacement costs each 18.000 hours
€ 3.550
Total cost after 3 years
€ 108.818
Total cost after 5 years
€ 176.030
Total cost after 10 years
€ 344.061
CoolStack® LED equivalent (3.485 µmol/s)
€ 34.800
Energy consumption per year (€ 0,11/kWh)
€ 18.446
No LED replacement costs: 10 year warranty
€ 0
Total cost after 3 years
€ 90.197
Total cost after 5 years
€ 127.128
Total cost after 10 years
€ 219.456
10 year total cost of ownership savings (€ 623 /m2)
€ 124.604
Related Products
Request A TURF PITCH advice
Would you like to get a healthier turf pitch? Generate grass growth all year round? Increase game quality and reduce injuries?
We help you to realize your goals based on data monitoring and state of the art LED technology. With our different approach, we offer to be your strong partner offering a broad range of solutions to create better grass at lower cost.
Feel free to contact us!
We help you to realize your goals based on data monitoring and state of the art LED technology. With our different approach, we offer to be your strong partner offering a broad range of solutions to create better grass at lower cost.
Feel free to contact us!
Call us for more information
Request a free turf pitch advice
