Booster 240
Cost-efficient solution to treat semi-large turf surfaces
Key features:
Affordable, large-scale grass care
Developed to treat 240 m2 of grass
Available in both HPS-SON-T, LED as well as Hybrid lighting
Data controlled grass management system
10 year LED warranty
CONTACT US FOR a TRIAL OR DEMONSTRATION

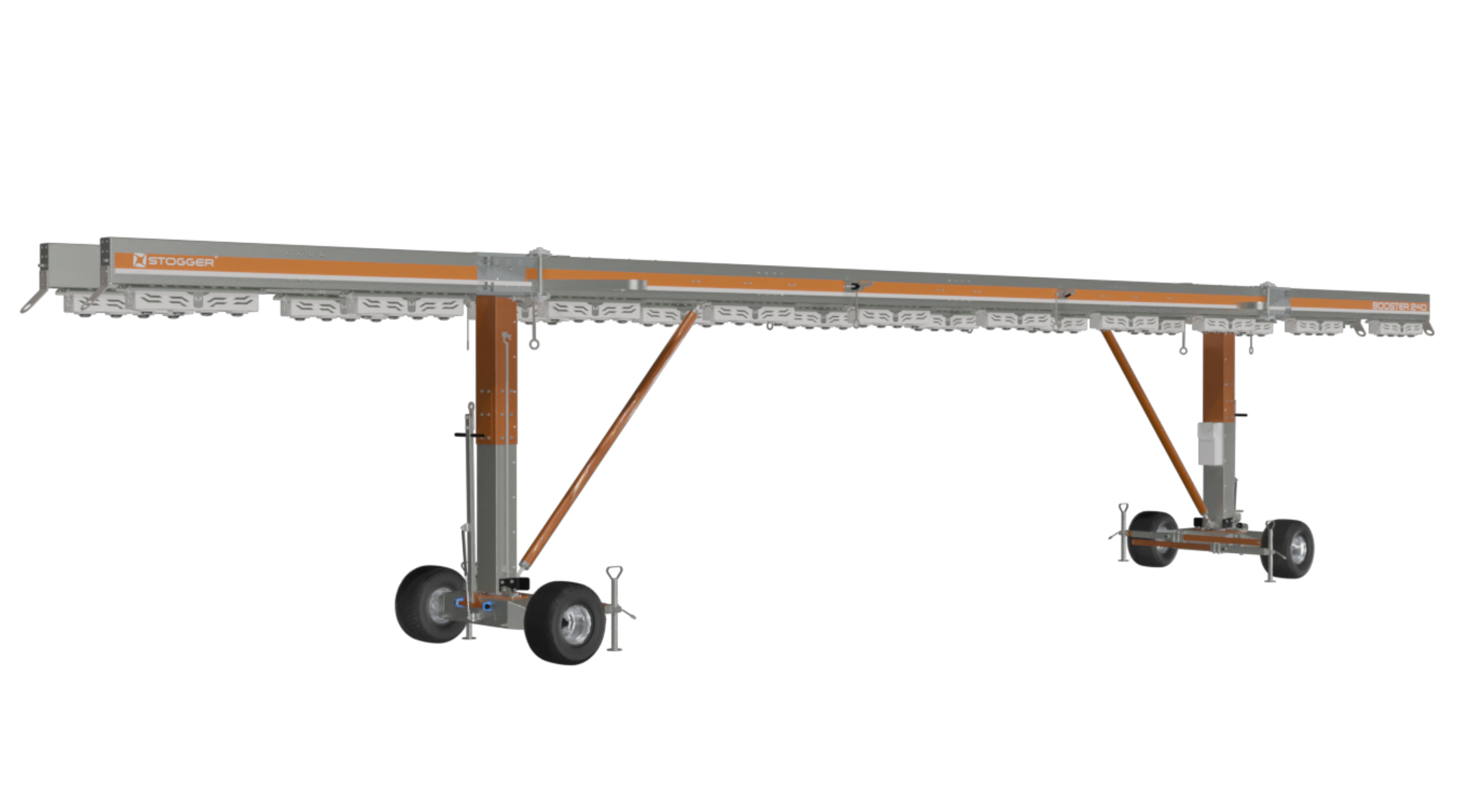

Booster 240
Large surface turf lighting solution

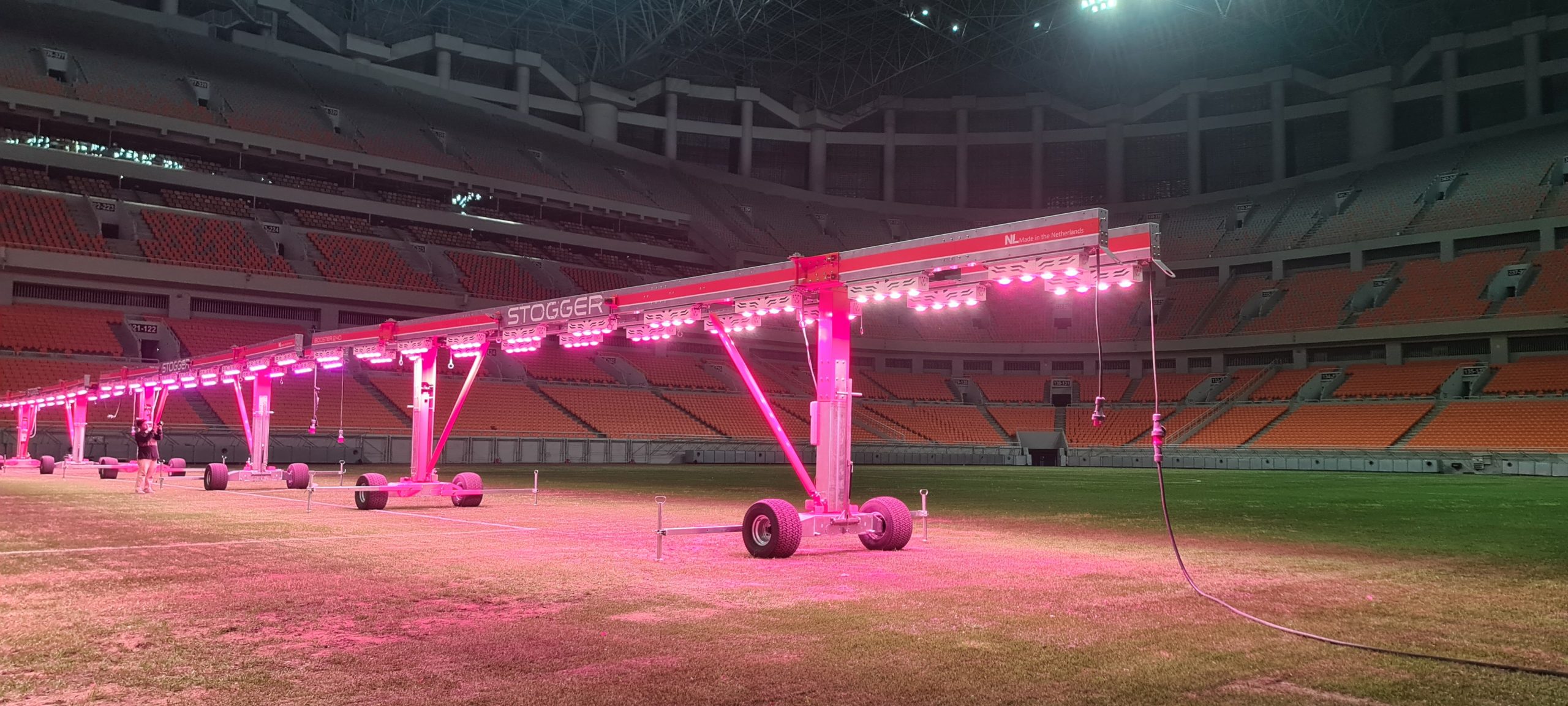

The Stogger Booster 240 is an cost-efficient height adjustable grass grow solution. It is suitable to treat large turf surfaces of 240 m2 at different intensities. It offers both HPS SON-T, It recovers your grass after games and events, and ensures pitch quality throughout the year. The solution is both suitable for use in warm as well as cold climates. The lighting as well as heat intensity can be adjusted to prevent tipburn of the grass.
Due to the application of state of the art LED lighting from Mechatronix, you save approximately € 6.000 per year in electricity costs compared to a comparable HPS SON-T setup. This ensures that you are guaranteed to have the lowest operating costs and, compared to HPS SON-T, have earned back this setup within 3 years. This ensures healthy grass and better growth at lower costs.
All features
Semi-large surface grass care
Rental possible
Lowest operational costs by using LED
10 year LED warranty
Easy to use, simple design
Data controlled grass management system
State of the art LED technology from Mechatronix
90% more light than a 1000 watt HPS SON-T for the same energy!
Full light spectrum control
Fast delivery
Up to 50% more energy efficient than competing LED systems
Sensor integration
Innovative lens design result in more homogeneous grass growth
Height reduction also possible without electricity
| Key specifications | Booster 240 | HPS SON-T / LED / HYBRID |
|---|---|
| Turf pitch lighting area | 240 m2 |
| Light control | Off / On (softstart / -stop) |
| Climate control | No |
| Dimensions (LxWxH) | 11,6 x 2,4 x 3,1m |
| Voltage | 110 - 400 Vac |
| Booster 240 LED | Specifications |
| LED fixtures | 18x Mechatronix CoolStack® |
| LED PPFD average | 320 µmol/m2/s |
| LED Energy consumption | 22,5 kW (94 W/m2) |
| LED Market leading efficiency | 3.485 µmol/J |
| LED dimming | 0 - 100% (wireless control) |
| Total weight | ~1600kg |
| Booster 240 HPS SON-T | Specifications |
| HPS SON-T fixtures | 36x Dutch Lighting Innovations |
| HPS PPFD average | 320 µmol/m2/s |
| HPS Energy consumption | 36 kW (150 W/m2) |
| HPS light efficiency | 2.100 µmol/J |
| HPS dimming | No, ON/OFF only |
| Total weight | ~1200kg |
Booster 480 explained
Height adjustable turf-lighting system
Booster 480 HPS & LED
HPS, LED or a combination of both fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
HPS, LED or a combination of both fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
Assembly and installation
The Booster 480 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
The Booster 480 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
Convenient usage
Due to the aluminium frames, the Booster 480 is easily maneuverable and replaceable by 2 fieldmanagers. Additional integrated motorized axles are available for replacing by 1 fieldmanager.
Due to the aluminium frames, the Booster 480 is easily maneuverable and replaceable by 2 fieldmanagers. Additional integrated motorized axles are available for replacing by 1 fieldmanager.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
Cost calculation example
HPS SON-T (2.100 µmol/s)
€ 7.200
Energy consumption per year (€ 0,11/kWh)
€ 21.507
HPS SON-T replacement costs each 18.000 hours
€ 3.095
Total cost after 3 years
€ 75.112
Total cost after 5 years
€ 120.385
Total cost after 10 years
€ 235.571
CoolStack® LED equivalent (3.485 µmol/s)
€ 33.350
Energy consumption per year (€ 0,11/kWh)
€ 13.696
No LED replacement costs: 10 year warranty
€ 0
Total cost after 3 years
€ 70.813
Total cost after 5 years
€ 97.205
Total cost after 10 years
€ 166.684
10yr tot. cost of ownership savings (€ 278 /m2)
€ 68.887
Request A TURF PITCH advice
Would you like to get a healthier turf pitch? Generate grass growth all year round? Increase game quality and reduce injuries?
We help you to realize your goals based on data monitoring and state of the art LED technology. With our different approach, we offer to be your strong partner offering a broad range of solutions to create better grass at lower cost.
Feel free to contact us!
We help you to realize your goals based on data monitoring and state of the art LED technology. With our different approach, we offer to be your strong partner offering a broad range of solutions to create better grass at lower cost.
Feel free to contact us!
Call us for more information
Request a free turf pitch advice
