Booster 70
Compact, exceptional simplicity for the lowest costs
Key features:
Basic and affordable grass care
Developed as a scalable grass treatment solution
10 year LED warranty
Data controlled grass management system
Innovative lens design result in more homogeneous grass growth
CONTACT US FOR a TRIAL OR DEMONSTRATION
Booster 70
Exceptional simplicity for the lowest costs
The Stogger Booster 70 is an affordable, scalable and user-friendly grass grow solution. It is very easy to use for basic and low-cost grass lighting. It recovers your grass after games and events, and ensures pitch quality throughout the year. This setup has been developed for use in Mediterranean climates or in conditions where the soil temperature does not become too low (< 5 °C) (field heating).
Due to the application of state of the art LED lighting from Mechatronix, you save approximately € 3.000 per year in electricity costs compared to a comparable HPS SON-T setup. This ensures that you are guaranteed to have the lowest operating costs and, compared to HPS SON-T, have earned back this setup within 3 years. This ensures healthy grass and better growth at lower costs.
All features
Basic and affordable grass care
Developed as a scalable grass treatment solution
Rental possible
Lowest operational costs by using LED
10 year LED warranty
Easy to use, simple design
Data controlled grass management system
State of the art LED technology from Mechatronix
90% more light than a 1000 watt HPS SON-T for the same energy!
Full light spectrum control
Fast delivery
Up to 50% more energy efficient than competing LED systems
Sensor integration
Innovative lens design result in more homogeneous grass growth
| Key specifications | Booster 70 | |
|---|---|
| Turf pitch lighting area | 68 m2 |
| Light control | Off / On (softstart / -stop) |
| LED dimming | 0 - 100% (wireless control) |
| Climate control | No |
| Dimensions (LxWxH) | 10,0 x 2,1 x 1,8m |
| LED fixtures | 8x Mechatronix CoolStack® |
| PPFD | 410 µmol/m2/s |
| Energy consumption | 8 kW (118 W/m2) |
| Market leading efficiency | 3.485 µmol/J |
| Voltage | 110 - 400 Vac |
| Weight | ~550kg |

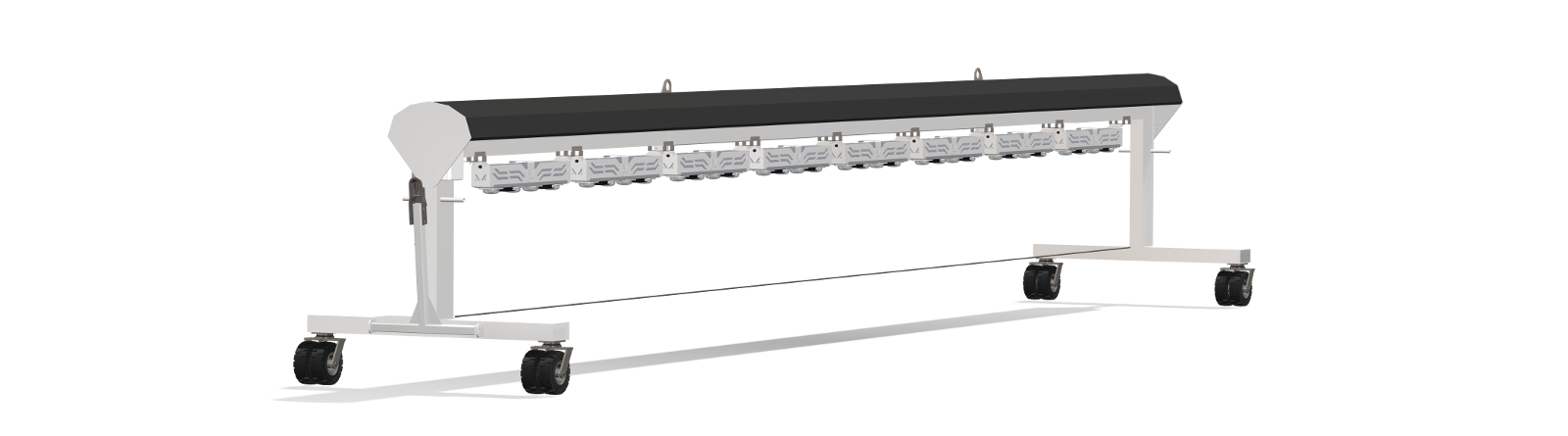

Booster 70 explained
Exceptional simplicity for the lowest costs
Booster 70
8x Mechatronix CoolStack® fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
8x Mechatronix CoolStack® fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
Assembly and installation
The Booster 70 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
The Booster 70 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
Convenient usage
Due to the very light and compact design and castors, the Booster 70 is easily maneuverable and replaceable by only 1 fieldmanager. Innovative design ensures that there is no danger for overturning.
Due to the very light and compact design and castors, the Booster 70 is easily maneuverable and replaceable by only 1 fieldmanager. Innovative design ensures that there is no danger for overturning.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
Cost calculation example
HPS SON-T (2.100 µmol/s)
€ 7.200
Energy consumption per year (€ 0,11/kWh)
€ 21.507
HPS SON-T replacement costs each 18.000 hours
€ 3.095
Total cost after 3 years
€ 75.112
Total cost after 5 years
€ 120.385
Total cost after 10 years
€ 235.571
CoolStack® LED equivalent (3.485 µmol/s)
€ 33.350
Energy consumption per year (€ 0,11/kWh)
€ 13.696
No LED replacement costs: 10 year warranty
€ 0
Total cost after 3 years
€ 70.813
Total cost after 5 years
€ 97.205
Total cost after 10 years
€ 166.684
10yr tot. cost of ownership savings (€ 278 /m2)
€ 68.887
